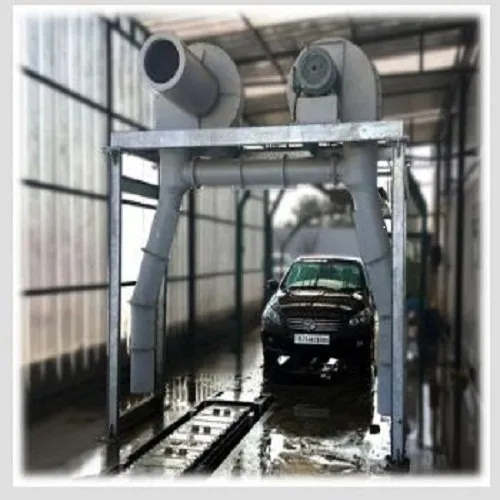

 FOURWIN - AUTOMATIC MOVABLE DRYING SYSTEM

 FEATURES & ADVANTAGES

·         Able to achieve up to 80% drying.

·         High efficiency - low energy cost.

·         Improved side drying even for tall vehicles (integral effect optimises the air flow of the roof to side zones of the car).

·         Enlarged nozzle heads (enlarge nozzle heads create an integral effect in the air flow, improving drying of vehicle sides this is expedient especially for high vehicles).

·         Suitable for all types of Cars.

·         Automatic Drying with quality result.

·         Time required/Vehicle - 4 Mins max


 SPECIFICATIONS

  • Parameter - Movable Dryer System
  • Length Required - 7000 mm
  • Width Required - 3600 mm
  • Height Required - 4000 mm
  • MOC – Structure - MS Galvanized
  • Blower Material - FRP
  • No. of Blowers - 2
  • No. of Motors - 2
  • Total HP of Motor - 15 HP x 2 = 30 HP
  • Travel Time - 3 min
  • Provision of Vehicle Sensing - YES
  • Power Consumption - 1.1 Unit

  • Product Image

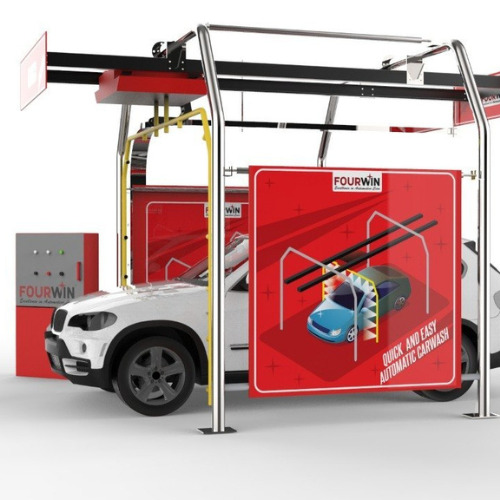

      FOURWIN - AUTOMATIC FULL CAR WASH SYSTEM

      FEATURES & ADVANTAGES

    •  Material of Construction is SS 304.
    •  No of Nozzles on top wash for water spray is 12 nos with water pressure of 24 Bar & for shampoo spray is 12 nos.
    •  No of Nozzles on Under body is 20 nos with water pressure of 24 Bar.
    •  Pump used is centrifugal vertical multistage pump which is maintenance free
    •  Efficiency Driven / Increase Productivity
    •  Helps in increasing customer satisfaction
    •  Reduces the dependency on manpower
    •  Can cater more load at any given time
    •  Saves electricity, water.
    •  Washes a vehicle in just 3 Min.


     Specifications

  • MODEL - FOURWIN -3010
  • DIMENSIONS (L X W X H) - WITHOUT RAMP FOR STANDARD TYPE 7000 X 3800 X 3500 (MM)
  • DIMENSIONS (L X W X H) - WITHOUT RAMP FOR SQUARE TUBE 7000 X 3500 X 3200 (MM)
  • WATER CONSUMPTION - 110-120 LTR/CAR
  • SHAMPOO CONSUMPTION - 15-20 ML/CAR
  • WATER PRESSURE - 20-22 BAR AT PUMP DELIVERY
  • AIR PRESSURE - 6 BAR COMPRESSED AIR
  • POWER - 415 V +/- 10 V, 50 Hz 63 AMP MCB
  • WASH CAPACITY - 20 CARS/HR
  • CONTROL PANEL - PLC (PROGRAMMABLE LOGIC CONTROLLER)


  • Product Image

      FOURWIN - AUTOMATIC UNDER BODY WASH SYSTEM

      FEATURES & ADVANTAGES

    •  Easy to operate and maintain
    •  Noise-free performance
    •  Operational fluency
    •  Help prevent rust,
    •  Promote cleanliness during vital inspections,
    •  Remove road grime and debris, and extend vehicle life overall


     Specifications

    •  MODEL - FOURWIN - 3012
    •  DIMENSIONS (L X W X H )- WITH RAMP 6000MM X 830MM X 600 MM ONE END-650MM AT OTHER END
    •  PRESSURE - 22 ~ 24 BAR
    •  WATER CONSUMPTION - 48 LTR/CAR WASH

    Product Image

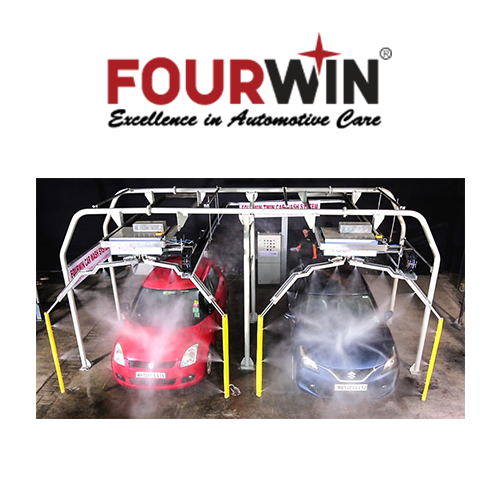

      FOURWIN - TWIN CAR WASH SYSTEM

      FEATURES & ADVANTAGES

    •  No of Nozzles on top wash for water spray is 14 nos with water pressure of 24 Bar & for shampoo spray is 14 nos.
    •   No of Nozzles on Underbody is 20 nos with water pressure of 24 Bar.
    •   Pump used is centrifugal vertical multistage pump which is maintenance free
    •   Efficiency Driven / Increase Productivity
    •   Helps in increasing customer satisfaction
    •   Reduces the dependency on manpower
    •   Can cater more load at any given time
    •   Saves electricity, water.
    •   Washes a vehicle in just 3 Min.



     SPECIFICATIONS

  • Model Name/Number - Automatic Twin Car Wash System
  • Pressure Capacity - 24 Bar
  • Brand - FourWin
  • Technique - Automation
  • Automation Grade - Automatic
  • Body Material - Stainless Steel
  • Cleaning Type - Touchless
  • Phase - Three Phase
  • Dimensions Without Ramp Standard Type - 7000 X 3800 X 3500 mm
  • Max Water Consumption - 120 Ltr/Car
  • Max Shampoo Consumption - 20 ml/Car
  • Max Water Pressure - 22 bar
  • Max Air Pressure - 6 bar
  • Voltage - 415 V
  • Control Panel - PLC
  • Wash Capacity - 20 Cars/hr
  • Frequency - 50 Hz




  • Product Image
    • Overview
    • Videos
    • Gallery
    • Brochures
    • Explore More

     FOURWIN - AUTOMATIC MOVABLE DRYING SYSTEM

     FEATURES & ADVANTAGES

    ·         Able to achieve up to 80% drying.

    ·         High efficiency - low energy cost.

    ·         Improved side drying even for tall vehicles (integral effect optimises the air flow of the roof to side zones of the car).

    ·         Enlarged nozzle heads (enlarge nozzle heads create an integral effect in the air flow, improving drying of vehicle sides this is expedient especially for high vehicles).

    ·         Suitable for all types of Cars.

    ·         Automatic Drying with quality result.

    ·         Time required/Vehicle - 4 Mins max

    ·

     SPECIFICATIONS

  • Parameter - Movable Dryer System
  • Length required - 7000 mm
  • Width required - 3600 mm
  • Height required - 4000 mm
  • MOC – Structure - MS Galvanized
  • Blower material - FRP
  • No. of Blowers - 2
  • No. of Motors - 2
  • Total HP of Motor - 15 HP x 2 = 30 HP
  • Travel Time - 3 min
  • Provision of Vehicle sensing - YES
  • Power consumption - 1.1 Unit

  • Product Image
