High pressure washer

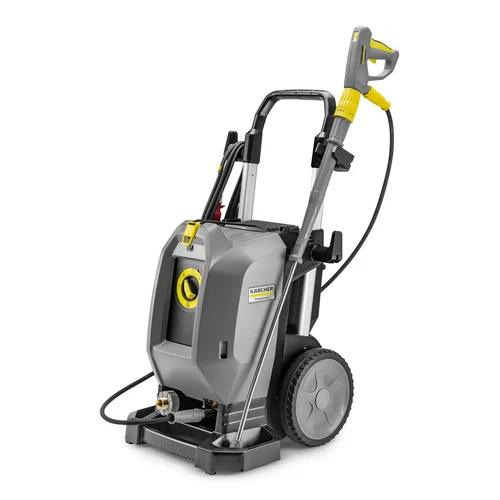

 KARCHER HIGH PRESSURE WASHER - HD 6/15

  FEATURES

  •  Durable and robust
  •  Extra large crankshafts and connecting rods with robust ball bearings. Ceramic pistons for reduced wear and tear. High performance sealing packages for longer working times.
  •  Especially easy to maintain
  •  Wide-opening machine cover for easy access to all service and maintenance-relevant components. Large water fine filter for protecting the pump. Integrated nozzle storage
  •  Improved cleaning performance
  •  Patented Kärcher power flat jet nozzles: up to 40 percent more impact force than conventional nozzles. High area coverage and thorough dirt removal.
  •  Large wheels and ergonomic push handle ensure optimal turning manoeuvrability and easy handling.
  •  The foldable push handle enables space-saving storage.


 SPECIAFICATIONS

  • Supply Voltage (Ph/V/Hz) - 1 / 220 - 240 / 50
  • Flow Rate (l/h) - 450 - 600
  • Inlet Temperature (°C) - 60
  • Working Pressure (bar/MPa) - 70 - 150 / 7 - 15
  • Max. Pressure (bar) - 190
  • Connected Load (kW) - 3.4
  • Weight (with accessories) (kg) - 48.7
  • Weight incl. Packaging (kg) - 60
  • Dimensions (L x W x H) (mm) - 709 x 469 x 1000
  • Product Image

    KARCHER HIGH PRESSURE WASHER - HD7/16


      FEATURES

    •   Long-lasting and reliable: 4-pole electric motor. Brass cylinder head and ceramic piston. Reliable crankshaft pump with additional thermostat valve.
    •  Robust and secure Robust tubular frame construction guarantees optimum protection of the machine. Built-in handles for transport.
    •  Maintenance-friendly - Excellent access to all relevant components. Large water inlet filter for easy servicing.
    •  The machine can be attached to the floor or the wall.
    •  Practical trigger gun storage with auto off function (Total Stop optional).


     SPECIAFICATIONS

  • Supply Voltage (Ph/V/Hz) - 3 / 400 / 50
  • Flow Rate (l/h) - 400 - 700
  • Inlet Temperature (°C) - 60
  • Working Pressure (bar/MPa) - 70 - 160 / 7 - 16
  • Max. Pressure (bar/MPa) - 220 / 22
  • Connected Load (kW) - 4.3
  • Weight (with accessories) (kg) - 55
  • Dimensions (L x W x H) (mm) - 625 x 500 x 360

  •  EQUIPMENT

  • Spray Gun: Standard
  • High-Pressure Hose: 10 m, ID 8, 315 bar
  • Stainless Steel Spray Lance: 100 mm
  • Power Nozzle
  • Anti-Twist System
  • Crankshaft Pump with Ceramic Pistons
  • Product Image

    KARCHER HIGH PRESSURE WASHER - HD10/25


     FEATURES

    •  powerful and robust crankshaft pump with brass cylinder head and piston with ceramic sleeves
    •  High performance and high efficiency. Long service life and low maintenance costs. With suction feature and up to 60 °C water temperature.
    •  Robust steel frame with large wheels for maximum portability
    •  Protects the machine even in adverse conditions. Simple and convenient to transport. Integrated storage space for accessories.
    •  Classic accessories with EASY!Lock connections
    •  Quick set-up and pack-up plus easy accessory replacement. Robust and durable accessories. Easy and intuitive to operate.
    •  Integrated water filter can be removed and cleaned without any tools.
    •  Pressure and water volume can be adjusted on the pump itself.
    •  Filling level and quality of the oil can be checked easily using the inspection glass and dipstick.
    •  4-pole low-speed motor with air-water cooling system
    •  Long service life and low maintenance costs.
    •  Combines efficient water cooling with a robust air cooling system for maximum cooling output even in fluctuating ambient temperatures and water temperatures.
    •  Compact design for maximum portability.


     SPECIAFICATIONS

  • Supply Voltage (Ph/V/Hz) - 3 / 376 - 424 / 50
  • Flow Rate (l/h) - 500 - 1000
  • Inlet Temperature (°C) - 60
  • Working Pressure (bar) - 60 - 250
  • Max. Pressure (bar/MPa) - 310 / 3.1
  • Connected Load (kW) - 8.8
  • Power Cable (m) - 5
  • Nozzle Size - 045
  • Water Inlet - 1″
  • Weight (with Accessories) (kg) - 68
  • Weight incl. Packaging (kg) - 76.8
  • Dimensions (L x W x H) (mm) - 720 x 637 x 1060

  •  EQUIPMENT

  • High-Pressure Hose: 10 m, ID 8, 315 bar
  • Spray Lance: 840 mm
  • Power Nozzle
  • Crankshaft Pump with Ceramic Pistons
  • 4-Pole, Three-Phase Motor with Air and Water Cooling
  • Pressure Switch-Off
  • Integrated Water Fine Filter
  • Oil Level Indicator
  • Brass Water Inlet
  • Product Image

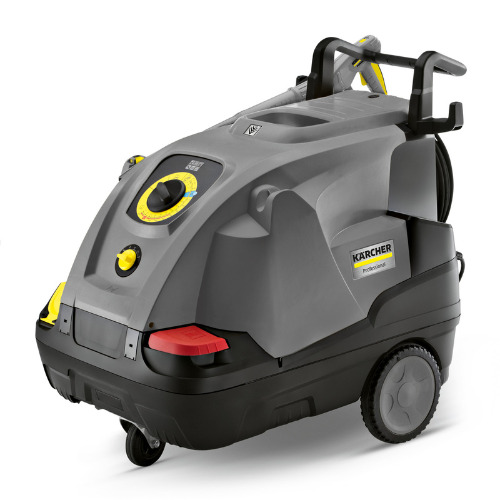

    KARCHER HIGH PRESSURE WASHER - HD 8/18

     FEATURES

    •  Robust and long-lasting
    •  Air/water-cooled electric motors for intensive use
    •  4-pole, slow-running electric motor guarantees a long working time

     Hot water

    •  Optimised fuel consumption in the eco!efficiency mode at 60°C.
    •  Save on cleaning agents, since grease and oil can in most cases be removed with just hot water.
    •  Shorter cleaning times and an anti-bacterial effect in comparison to cold water high-pressure cleaners.

     Ease of use

    •  Intuitive operation thanks to the large single-button selector switch.
    •  Large tank opening with filling chute.
    •  Storage compartment for nozzles, tools and other small parts.

     Reliability

    •  The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
    •  Large water filter protects pump against damage.
    •  Easy Press trigger gun
    •  Ergonomic design for ease of use.
    •  Easy press trigger for effortless use.
    •  With soft grip for a secure hold.


     SPECIAFICATIONS

  • Supply Voltage (Ph/V/Hz) - 3 / 400 / 50
  • Flow Rate (l/h) - 300 - 800
  • Working Pressure (bar/MPa) - 30 - 180 / 3 - 18
  • Temperature (for Supply 12 °C) (°C) - Max. 60
  • Connected Load (kW) - 6
  • Consumption of Heating Oil or Gas at Full Load (kg/h) - 3.5
  • Fuel Tank (l) - 15
  • Weight (with Accessories) (kg) - 110
  • Dimensions (L x W x H) (mm) - 1060 x 650 x 920

  •  EQUIPMENT

  • Spray Gun: Easy Press Trigger Gun
  • High-Pressure Hose: 10 m, DN 6, 250 bar
  • Spray Lance: 1050 mm
  • Power Nozzle
  • Anti-Twist System
  • Pressure Switch-Off
  • Product Image

     KARCHER HIGH PRESSURE WASHER - HD 5/11

     FEATURES

    •  Durable and robust

     With its brass cylinder heads, the 3-piston axial-piston motor unit ensures an exceptionally long service life. The sturdy pipe frame provides protection in continuous

     heavy-duty use. Automatic pressure relief for protecting the components extends their life.

    •  Versatile

     The machine can be attached to the floor or the wall. Can be used vertically or horizontally.

    •  Maintenance-friendly

     Excellent access to all relevant components. The fresh water filter protects the components and can be removed and cleaned with no tools required.

     Compact design with high mobility

     Very compact construction style and minimal weight.

     Comfortable handle for simple carrying.

     Space-saving storage and transport


     SPECIAFICATIONS

  • Supply Voltage (Ph/V/Hz) - 1/230/50
  • Flow Rate (l/h) - 500
  • Inlet Temperature (°C) - 60
  • Working Pressure (bar/MPa) - Up to 110 / Up to 11
  • Max. Working Pressure (bar/MPa) - 160 / 16
  • Connected Load (kW) - 2.2
  • Weight (with Accessories) (kg) - 21.3
  • Weight incl. Packaging (kg) - 23.2
  • Dimensions (L x W x H) (mm) - 475 x 335 x 340
  • Product Image
    • Overview
    • Videos
    • Gallery
    • Brochures
    • Explore More

    KARCHER HIGH PRESSURE WASHER - HD 6/15

      FEATURES

    •  Durable and robust
    •  Extra large crankshafts and connecting rods with robust ball bearings. Ceramic pistons for reduced wear and tear. High performance sealing packages for longer working times.
    •  Especially easy to maintain
    •  Wide-opening machine cover for easy access to all service and maintenance-relevant components. Large water fine filter for protecting the pump. Integrated nozzle storage
    •  Improved cleaning performance
    •  Patented Kärcher power flat jet nozzles: up to 40 percent more impact force than conventional nozzles. High area coverage and thorough dirt removal.
    •  Large wheels and ergonomic push handle ensure optimal turning manoeuvrability and easy handling.
    •  The foldable push handle enables space-saving storage.


     SPECIAFICATIONS

  • Supply Voltage (Ph/V/Hz) - 1 / 220 - 240 / 50
  • Flow Rate (l/h) - 450 - 600
  • Inlet Temperature (°C) - 60
  • Working Pressure (bar/MPa) - 70 - 150 / 7 - 15
  • Max. Pressure (bar) - 190
  • Connected Load (kW) - 3.4
  • Weight (with Accessories) (kg) - 48.7
  • Weight incl. Packaging (kg) - 60
  • Dimensions (L x W x H) (mm) - 709 x 469 x 1000
  • Product Image
