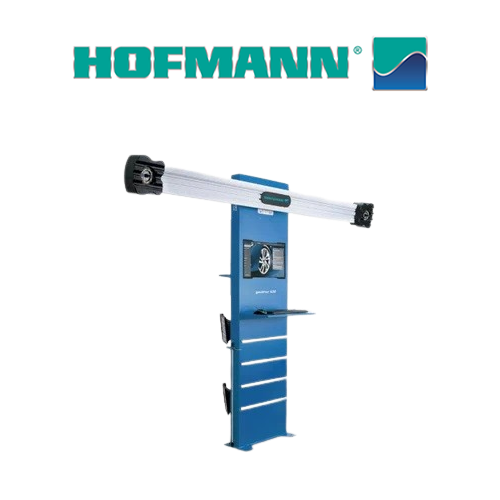

HOFFMAN WHEEL ALIGNMENT SYSTEM - GEOLINER 630

 FEATURE

• Version without TILT and post
• Accurate and repeatable readings in under 2 minutes
• Online connectivity for automatic software and specs updates
• Portable remote display
• Mainstream alignment features
• View detailed videos of how to make needed adjustments to complete even the most complex tasks.
• Turn the front wheels and access difficult adjustment points while still displaying centred toe readings.
• Fast and easy to use. Self-cantering design for accurate measurement of the vehicle dimensions.
• Two-sided claws eliminate accessories and allow reliable clamping even over hub caps.
• All new user interface with three levels of intervention - Compensate, Warn, Alert - with corrective actions clearly identified and more information just one click away.

 SPECIFICATIONS

• Rim diameter - 11” - 22”
•  Power supply - 230 VAC 1ph 50/60 Hz
•  Track width - 121.9 cm –243.8 cm
•  Wheel base - 200.7 cm – 457.2 cm
•  Display - 22" TFT

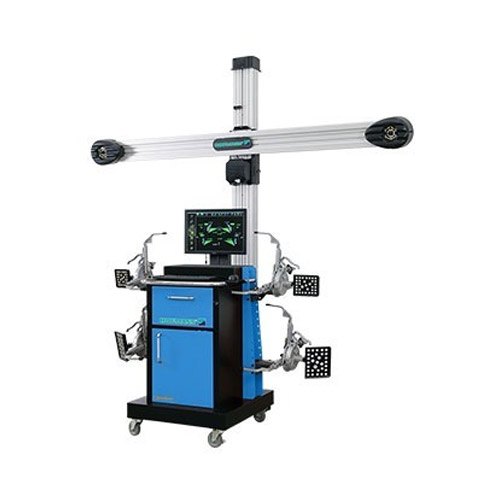

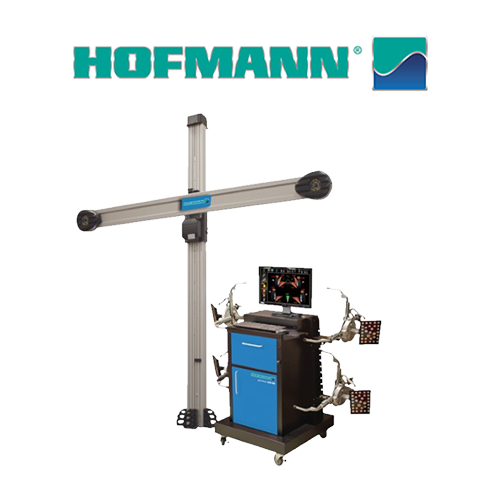

 HOFFMAN WHEEL ALIGNMENT SYSTEM - GEOLINER GOLD 2

FEATURES

• VHCS - Variable Height Camera System ( Allows infinite positions from floor to full overhead )
• Pro 42 Gold Software.

• AC 400 quick Clamp.

• XD camera - Accurate and reliable.

• XD Targets - Small and impact resistant.

• TID - Ride Height Measurement (Optional).

Deluxe cabinet.

• Suitable with wheel alignment scissors lift to conduct alignments at different heights.
• V.O.D.I.TM (Vehicle Orientation Directional Indicator).

SPECIFICATIONS

• Alignment Software  - Pro 42 Gold
• Track Width - 48’’ to 96’’
• Wheel Base - 79’’ to 180’’
• Wheel diameter - 19’’ to 39’’
• Clamp Type - AC 400 – Touch less
• Clamp Weight - 3.2 Kg
• Target - Small XD Target
• Type of Camera - XD Camera
• No. of camera – 2
• Camera Beam – Aluminum
• cabinet - Deluxe Cabinet

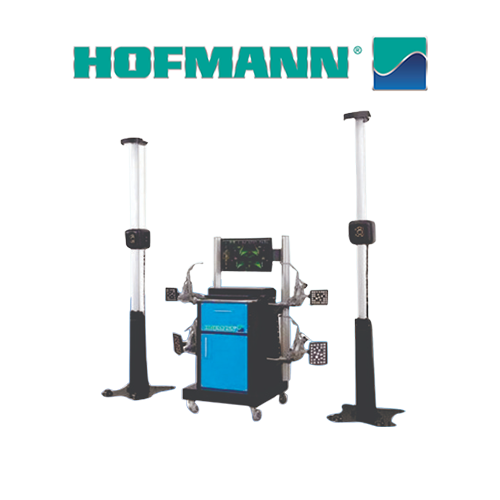

HOFFMAN WHEEL ALIGNMENT SYSTEM - GEOLINER PLATINUM 3

FEATURES

• AC400 Wheel clamps.
• XD Cameras with factory ISO calibration for higher accuracy
• Auto-tracking DigiSmart Technology
• Cabinet III
• Pro42 Platinum Software
• Drive-on camera aid
• Steering angle sensor reset
• Advanced Vehicle Dimension
• Rolling Radius
• Inspection and report
• Active Ride Height
• OEM Enabled Procedure
• Wireless technology enables drive through configuration, mobility and simplified installation
• “DigiSmart”tm camera tracking insures the cameras automatically maintain the optimal position for any working height.
• New, XD target and camera system offers high accuracy and smaller/lighter targets
• OEM approved vehicle measurement procedures
• AC400 clamps never touch the rim, eliminating the opportunity for damage.

 SPECIFICATIONS

• Usage/Application - Wheel Alignment
• Voltage - 220 V
• Brand - Hofmann
• Wheel Size - 19-39 inch
• Power - 230V
• Model - Geoliner Platinum 3
• Frequency - 50 Hz
• Balancing Speed - 220 rpm
• Phase - Single Phase
• Feature - 3D Dynamic Simulation
• No of Wheel - 4
• Power Source - Electric
• Clamp Weight - 3.2 Kg

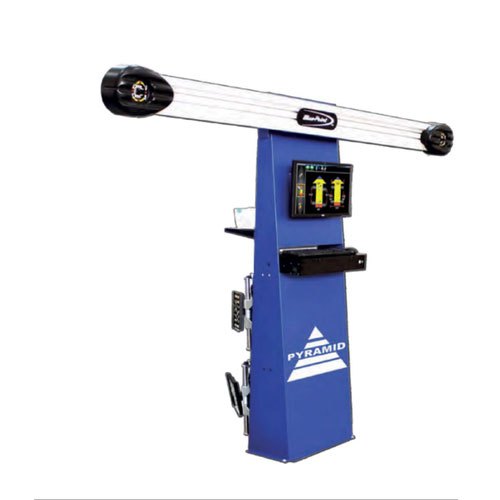

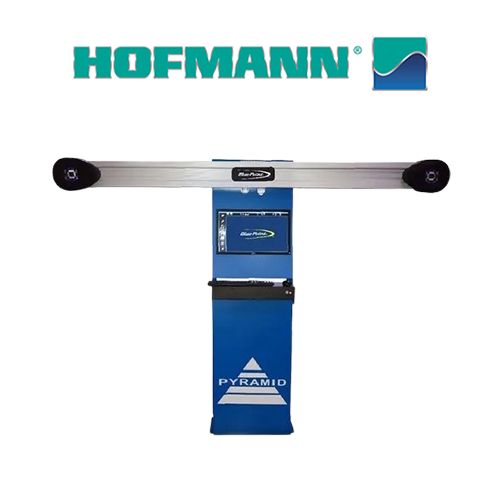

HOFFMAN WHEEL ALIGNMENT SYSTEM - GEOLINER PYRAMID

FEATURES

• The new Pyramid features high resolution cameras (XD cameras) are built into a new Kiosk type camera Post.
• The new beam features teardrop shaped camera covers, and the cameras feature our patented VODI (Vehicle Orientation Direction Indicator).
• Advanced XD targets and AC100 wheel clamps are lightweight, durable and impact resistant.  Passive front and rear XD targets improve durability with no electronics to damage.
• Pro42 Silver is a high-resolution ICON based software program designed to provide the most effective use of information required by the technician.

With optional tilt-beam kit – operators can also work at various working height.

 SPECIFICATIONS

• Measurement - True 3D modeling of vehicle
• system - spindle Plane
• camera support configuration - Fixed camera beam
• installation - suitable in Pit & Wheel
• configuration - alingment Scissors lift
• wheel clamp - Tyre clamp AC100
• Clamping range - 11" to 22"
• Measuring range - 11" to 22"
• Track width - 48 to 96"
• wheel base - 79" to 180"
• individual toe - +/- 35 degree
• Camber - +/- 55 degree
• caster & SAI - +/- 30 degree
• Toe out on turns - Yes
• Hardware - 2XD camera with integrated PC
• Software - customized software for alingment, Pro 42 - window based

With standard accessories

• Steering lock
• Brake pedal depressor
• Two wheel chocks
